Quantity Takeoff Services That Trace Back to the Sheet
Quantity takeoff services for estimators who already hold their own rates: counts, lengths, areas and volumes read off your drawing set before a dollar is attached to any of them. Every figure carries the sheet number and the markup it came from, so you can check it in seconds rather than take it on trust.
What ships with the quantity file
- Editable Excel or CSV, sortable and extendable
- Color-coded marked-up PDF set, one color per condition
- Assumptions, inclusions, exclusions, open questions
- Sheet number on every line, so any figure can be audited
- One division alone or the full multi-trade set
What quantity takeoff services cover, and where measurement stops
Four questions estimators ask before they send a set. Answered straight, no preamble.
What is a quantity takeoff?
A quantity takeoff is the audited scope of work expressed as numbers: every condition on the drawing set resolved to a quantity and a unit, with the sheet and the markup that produced it recorded beside it. It is finished when every condition has either a quantity or a written reason it does not. That is the whole job of quantity takeoff services, and it stops where price begins.
What does a measured package cost?
It is quoted per package from your actual drawings as one fixed figure, approved in writing before measuring starts. What moves it is the number of divisions you order and how much the set resolves, not how many sheets it runs to. Nothing is billed until you approve the number and the delivery date together.
Who orders the measurement without the pricing?
Specialty subs who already hold their labor and material rates, and general contractors checking a sub's numbers before award. If the pricing is yours, measurement is the only part worth sending out, and it is the part that eats the week in front of a bid date.
How fast does it come back, and what does it cost?
Delivery runs 24 to 96 hours from an approved quote, and the date is set against your bid date at the quote stage so you know it before you commit. Price is fixed per package and agreed in writing before measurement starts, so the number you see is the number you pay.
Count, linear, area, volume: the four measurements behind every number
Every construction quantity takeoff reduces to one of four measurement types. Which one a scope belongs to decides the unit it ships in, and getting that wrong is the first thing that breaks when a bid is measured by eye.
Count
Devices, fixtures, doors, frames, hangers, anchors, connection plates, cleanouts. Counted against the schedule mark rather than the plan symbol, so an item drawn on a floor plan, a ceiling plan and a detail is counted once instead of three times.
Linear
Conduit, pipe, duct, base, curb, guardrail, plates, joint reinforcement, edge form. Measured to the routing shown, with drops, risers and offsets taken off the riser diagram instead of averaged into the horizontal run.
Area
Board, sheathing, flooring, roofing, paving, formwork contact area, split by assembly so nothing averages. Drywall takeoff services are the clearest case: board separates by layer, thickness, type and finish level, because one gross wall area hides three different labor units.
Volume and weight
Concrete, grout, cut and fill, aggregate, rebar tonnage, steel by member weight. Concrete takeoff services report cubic yards by placement, with reinforcement counted off the schedule rather than assumed as a percentage of the pour. Fabricators going from the member list into shop drawings carry the same schedule forward.
What gets measured on the set, division by division
The measurement itself, trade by trade, in the unit each line ships in. Mechanical, electrical and plumbing get their own section below.
Concrete, masonry and metals
The load path, quantified before anything gets hung on it.
Cast-in-place concrete
CSI 03Cubic yards by placement, not one gross pour, reinforcement counted off the schedule.
Footings, slabs and vertical work
Volume by element, slab area and thickness by pour, thickened edges separate, form contact area by face.
Reinforcement and embeds
Rebar tonnage by bar size, welded wire area, dowels, chairs, embeds and blockouts counted.
Masonry
CSI 04Unit counts by wall type, grout and reinforcement carried against the wall they serve.
CMU and structural block
Counts by nominal size and wall type, bond beam and lintel block, grout volume by cell spacing.
Brick, stone and veneer
Face area by unit type, ties and anchors counted, flashing, weep and control joint footage.
Structural and miscellaneous metals
CSI 05Member by member off the framing plans and connection details, in the weight a fabricator buys in.
Beams, columns, joists and deck
Footage and calculated weight by shape, joists by mark, bridging, deck area by profile and gauge.
Stairs, rails and supports
Flights and landings by mark, rail footage by type, lintels, bollards and equipment supports.
Wood, envelope and openings
Where a bid leaks when the number comes from a glance rather than a measurement.
Wood, framing and composites
CSI 06Framing quantities in the units a lumber package is actually built from.
Dimensional framing and sheathing
Stud counts by wall type and height, plates, headers, blocking, sheathing area, board feet by size.
Engineered lumber and trusses
LVL, PSL and glulam by mark and length, trusses by profile, hangers and connectors by type.
Thermal and moisture protection
CSI 07Roof, wall and below-grade assemblies measured by layer, not as one envelope number.
Roofing, flashing and insulation
Roof area by system and slope, insulation by layer and R-value, edge metal footage, curbs counted.
Barriers, sealant and firestopping
Waterproofing and air barrier area, sealant joints by length and size, firestop by penetration type.
Openings
CSI 08Every opening matched to its mark so hardware and glazing never go missing.
Doors, frames and hardware sets
Door and frame matrix by opening mark, frame type split out, hardware listed by set number.
Storefront, curtain wall and glazing
Storefront and curtain wall area by elevation, glazing footage by edge condition, coiling doors by mark.
Finishes, earthwork and site
Finish schedule first, then the civil sheets and the volumes nobody wants to run.
Finishes
CSI 09Tied to the finish schedule and the room, never to a gross floor area.
Framing, board and ceilings
Stud framing by size, gauge and height, board area by layer and type, grid and hard-lid area.
Flooring, base, paint and coatings
Flooring by material and room, base footage by type, surface area by substrate and coat count.
Earthwork
CSI 31Volumes calculated from existing and proposed grades, not lifted from a summary note.
Cut, fill and site preparation
Volumes by surface comparison, topsoil strip and respread, undercut, shrink and swell stated as a factor.
Clearing, erosion control and shoring
Clearing area and tree counts, silt fence and inlet protection footage, shoring area as sectioned.
Utilities and paving
CSI 32-33Runs measured to the profile, structures counted to the schedule, surfaces split by section.
Storm, sanitary, water, site electrical
Pipe by diameter and material to profile length, structures by number, duct bank by size, bedding volume.
Paving, curb and site concrete
Paving area by section and thickness, base volume, curb footage by type, walks, pads, striping.
MEP takeoff services: what gets measured in divisions 21 to 28
Mechanical, electrical and plumbing carry the most parts per square foot and the least tolerance for a guess. Our MEP takeoff services quantify all three, ordered on their own or measured alongside the rest of the set.
Electrical takeoff services
One-line, panel schedules and floor plans read together, so feeders come from the schedule instead of a scaled plan run.
Raceway and conductor
CSI 26Conduit and wire on separate lines by size and type, because a change in either moves the labor unit.
Branch and homerun conduit
Runs by trade size and material, EMT, rigid, PVC and MC kept apart, supports counted against the run.
Feeders and risers
Lengths from the one-line and riser diagram, conductors per run, vertical drops measured rather than allowed.
Boxes, fittings and tray
Junction and pull boxes by size, fittings by type, cable tray and wireway by the foot.
Devices, fixtures and gear
CSI 26-28Counted by type mark and reconciled against the schedules before the file ships. Communications and fire alarm devices are counted here, on their own lines.
Devices and low voltage
Receptacles, switches, data drops and sensors by mark, split by system so fire alarm never sits on a lighting line.

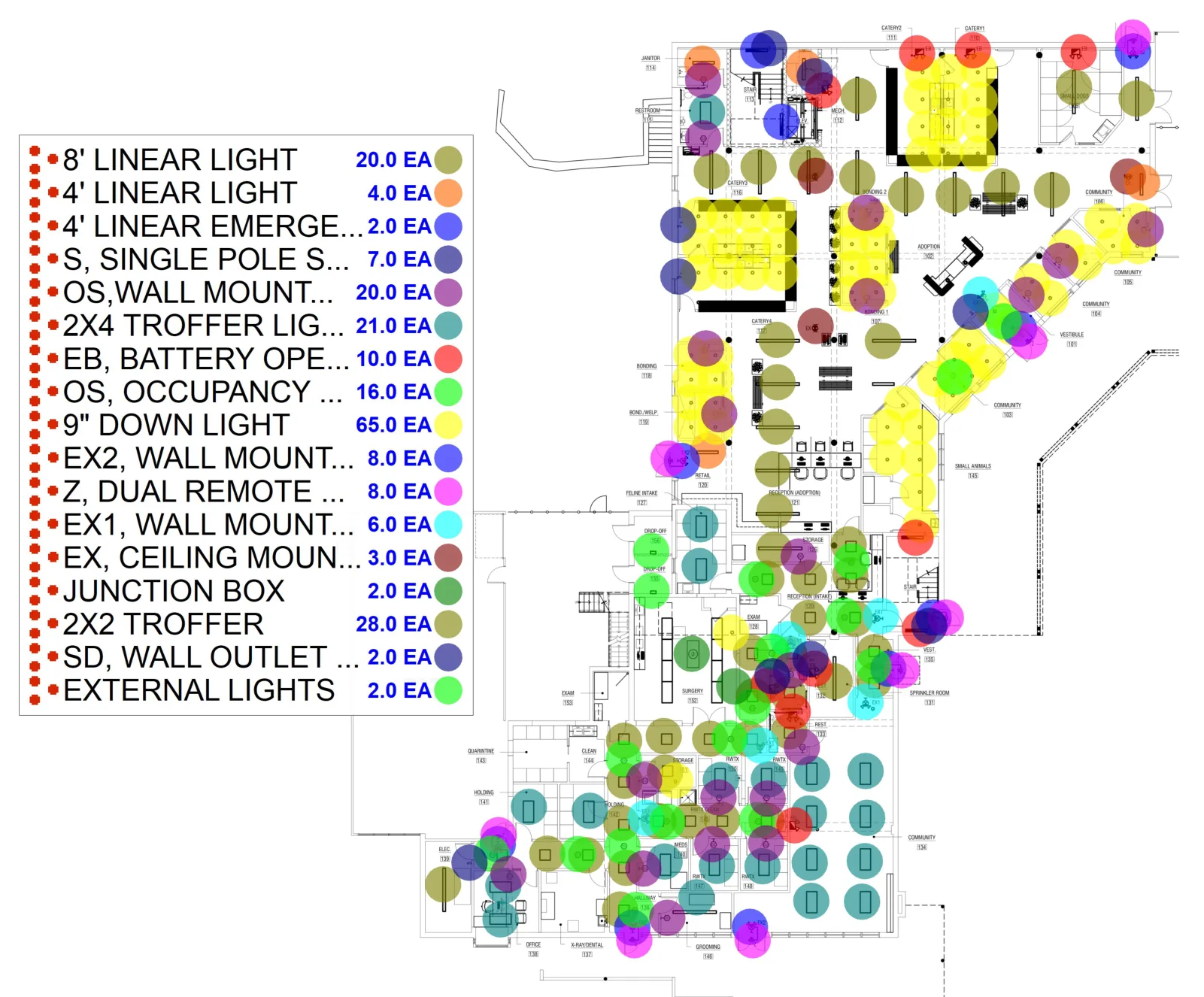

Lighting
Fixtures by type mark off the schedule and ceiling plan, emergency, exit and exterior on their own lines.
Panels, gear and grounding
Panelboards, switchboards, transformers and disconnects off the schedules, reconciled to the one-line, plus bonding.
Mechanical and HVAC
Air side and water side quantified apart, so a duct revision leaves the piping lines alone when the addendum lands.
Ductwork and air distribution
CSI 23Sheet metal reported both ways, footage and calculated weight, because some shops bid by the foot and some by the pound.
Duct by size and gauge
Supply, return, exhaust and outside air by size and gauge, rectangular and round apart, liner and wrap carried.
Fittings, transitions and flex
Elbows, tees, takeoffs and dampers counted by type instead of buried in a straight-duct total.
Grilles, registers and diffusers
By mark off the schedule and ceiling plan, neck size and mounting type carried on the line.
Equipment and piping
CSI 23Equipment by schedule mark, piping by size and material with insulation carried against it.
Units and terminal equipment
Rooftop units, air handlers, VAV boxes, fan coils, exhaust fans and pumps by mark, curbs and isolation listed.
Hydronic and refrigerant piping
Chilled, hot, condenser water and refrigerant by diameter and material, valves and hangers counted, insulation by size.
Plumbing and fire protection
Fixtures reconciled against the plumbing schedule and the architectural plans, so one that appears on only one becomes a question.
Piping by system
CSI 22Every system on its own lines, measured by diameter and by material.
Domestic water
Hot, cold and recirculation by diameter and material, valves counted, insulation footage carried against the pipe.
Sanitary, vent and storm
Waste, vent and storm by diameter and material, cleanouts and drains by mark, roof drains against the area served.
Gas and specialty gas
Runs by diameter and material, regulators, valves and outlets counted where the specialty sheets show them.
Fixtures, carriers and supports
CSI 22Counted by mark and reconciled to the plumbing and architectural sheets together.
Fixtures and trim
Water closets, urinals, lavatories, sinks, showers and hose bibbs by mark, trim and carriers listed against each.
Heaters, pumps and hangers
Heaters, tanks, pumps and backflow preventers by mark, hanger spacing taken from the spec rather than assumed.
Fire protection
CSI 21Measured where the drawings show a laid-out system, flagged where the set leaves it performance-specified.
Sprinkler piping and heads
Main, branch and drop piping by diameter, heads by type and temperature rating, hangers and bracing as drawn.
Risers, valves and standpipes
Riser assemblies, control and check valves, flow switches and hose valves by mark, located to the sheet.
Send one drawing set and see the price first
Name the divisions and your bid date. Coverage, the fixed price and the delivery date come back in writing before a single condition is drawn.
How a number gets tied to a drawing
A quantity you cannot audit is a quantity you have to take on faith. Nothing in the file is a total you are asked to trust blind.
The scale is verified first
Every sheet is checked against a known dimension before a measurement is taken. A sheet that plots out of scale, or a title block that disagrees with the geometry, comes back as a flag rather than a measurement taken through the problem.
Each condition gets one color and one name
Conditions are measured in PlanSwift and marked up in Bluebeam, one color and one label each. A type X wall is not the color of a type B, and a slab on grade is not the color of an elevated deck.
The label carries into the workbook
Every line carries its markup label and the sheet it was read from. Read a figure in Excel, find the color on the drawing, and you are looking at the geometry that produced it.
Quantities reconcile sheet by sheet
Totals roll up per sheet before they roll up per trade. A sheet nobody measured shows as a visible gap instead of quietly pulling a total down, which is the failure mode that surfaces on site.
The markups ship with the file
The full color-coded marked-up PDF set is delivered with the workbook on every package, one trade or twenty. Not an upgrade, and not something you ask for.
What gets counted, what gets calculated, and what comes back as a question
Counting, calculating and flagging are three different operations. Mixing them up is how a takeoff ends up confident and wrong.
| Devices, fixtures, doors | Counted by mark | Schedules first, plans second | EA, with the mark on the line |
|---|---|---|---|
| Rebar and structural steel | Calculated from schedules | Bar and framing schedules | TON, plus member counts |
| Performance-specified scope | Not measured | Spec sections, design-build notes | Written exclusion with the reason |
| Conflicting or missing detail | Not assumed | Wherever the conflict sits | Dated open question, before the bid |
Ask before you upload, not after the bid
Not sure whether a division is worth measuring, or how a performance-specified scope would come back? Talk it through with an estimator first.
How conflicts between plan, section, schedule and spec are resolved
A drawing set is written by several people and issued in pieces. Disagreements are normal. What matters is whether they get recorded or absorbed.
Plan says one thing, section says another. Which wins?
The more specific document governs, so a wall section beats a plan graphic and a detail beats a section. The choice is written on the assumptions sheet with the sheet numbers on both sides, so you can overrule it in five seconds if you read the set differently.
What if the schedule and the plan show different counts?
Both get counted and the difference gets named. Fixtures, doors and equipment are reconciled against their schedule before the file ships, and where the two disagree you get the schedule count, the plan count and a question, rather than one number hiding the other.
What happens when an addendum lands mid-measurement?
Send it and the affected conditions are remeasured against it. Only the conditions it touches get reopened, so the rest of the file does not restart, and the issue date on the assumptions sheet moves to the revision you were measured against.
One scope, measured end to end
What happens between an upload and a delivered file, walked through on a single realistic scope. This is a composite of typical work, not a client project.
Take a two-story shell and core with a 38,000 square foot footprint: cast-in-place foundations, structural steel above, a single-ply roof and storefront on two elevations. The set arrives as a 96-sheet PDF at the 90 percent issue, bid date eleven days out, divisions 03, 05, 07 and 08 ordered.
Scale is verified against a dimension string on the foundation plan, then on every sheet that will carry a measurement. Two civil sheets plot short and come back flagged. Divisions 31 to 33 were not ordered, so they are noted and set aside rather than quietly measured into the package.
Concrete goes by placement: footings and grade beams off the foundation plan and footing schedule, slab by area and thickness with thickened edges on their own lines, form contact area by face, rebar off the bar schedule in tons. Steel is taken member by member and reported as footage and weight. Roofing splits into membrane area by slope, two insulation layers, edge metal by the foot, curbs counted. Openings come off the door and frame matrix by mark, hardware by set number, storefront by elevation.
The set disagrees with itself twice. The roof plan shows a mechanical curb the framing plan does not, and a door mark on the finish plan is missing from the schedule. Both leave as dated questions with the sheet numbers attached. Two typical bays are extended across nine identical bays, and that extension is written down so it can be checked rather than trusted.
What the measured scope deliberately leaves out
A file that quietly includes things it should not is worse than one that stops at a clear line. Here is where that line sits.
Put the measuring on a monthly partnership
Shops sending several sets a month get the same divisions, the same condition names and the same markup format on every package, at a monthly rate.
Two-step QA: what the second estimator actually recomputes
Every package is checked twice, by two people, against the drawings rather than against the first estimator's spreadsheet. Two steps, not three, and the same two on one division as on a full set.
Step one: the estimator self-check
The estimator who measured the job reruns their own work before the package leaves their desk.
Rerun and recount
Conditions are rerun rather than re-read, and counts are taken again from the schedules.
Scale reverified
Every sheet that carried a measurement is checked against its dimension string a second time.
Counts against schedules
Fixture, door, equipment and device counts are retaken and compared against the first pass.
Coverage and gaps
The two silent failure modes, double coverage and dropped runs, are hunted deliberately.
Double coverage
Two markups on the same geometry are found, one is removed, the totals rerun.
Match line breaks
Runs that stop at a match line and never resume on the next sheet are traced across.
Step two: the independent audit
A second estimator who did not measure the job audits it against the drawing set itself.
Recomputed, not reviewed
The auditor recalculates conditions cold from the sheets rather than reading the first numbers back.
Sample recomputation
Selected areas, volumes and runs are remeasured from the drawings and compared against the file.
Unit and math check
Units are confirmed correct for the trade and every rollup recalculated from its own lines.
Reconciliation before release
Nothing leaves until the workbook, the markups and the written scope agree with each other.
Label to line, both directions
Every markup label matches a workbook line, and every workbook line matches a markup.
Exclusions tested
Anything visible on the sheets and absent from the file must appear on the exclusions list, or it goes back.
The file, the markups, and how much of it you order
Editable, labeled, and formatted the way your office already works. Nothing here is a locked total you have to accept on trust.
Editable Excel and CSV
A live workbook you can sort, filter and extend with your own pricing columns. Nothing is flattened into a locked PDF. Delivered in your template or coded to CSI 01-49, whichever your cost codes expect, with source takeoff files on request at the quote stage.
Color-coded marked-up drawings
The full marked-up PDF set, one color and one label per condition, on every package rather than only the large ones. It turns a spreadsheet figure into something you can point at in a scope meeting.
Assumptions, inclusions and exclusions
One page: every judgment call, everything measured by division and sheet, everything visible and deliberately not measured with its reason, and every open question with the date it was raised.
One division or the full set
A single division alone, or a multi-trade package spanning CSI 01-49 from sitework through mechanical, electrical and plumbing, in all 50 states. Name what you want at upload and the quote covers that scope only.
The same quantities, priced
Want labor, material, equipment and markup applied to these numbers instead of the numbers alone? That is built from the same measured file rather than started again from the drawings.
See construction estimating servicesSee a delivered package first
An anonymized quantity package: the workbook with its units and totals live, and the color-coded sheets behind them. Check a length against the plan yourself. Every quantity here is offered to be argued with, which is the point of shipping the markups beside the numbers.
See sample deliverablesGoing from the member list to shop drawings
Fabricators who take the measured member schedule straight into detailing can carry the same file forward instead of rebuilding it. The quantities and the marks stay the ones your erector will read on site.
See structural steel detailing servicesHow the file lands in the software you already run
You hold the pricing, so the measured file has to arrive in a shape your own system can take. This is what ships by default, what can be named at the source, and what you have to ask for before work starts.
What ships on every package
Three files, on one division and on twenty.
Editable Excel and CSV
Working fileLive columns, units and totals. Sort it, filter it, add your own pricing columns, or paste one division straight into your bid form.
CSV that imports without a cleanup pass
One row per condition, one column per field, no merged cells and no header art sitting above the data.
Your template instead of ours
Send the spreadsheet your office bids from and the package comes back inside it rather than beside it.
The color-coded markup set
ProofOne color and one label per condition on the sheet it was measured from, so a figure in the workbook opens as geometry on the drawing.
Assumptions, inclusions, exclusions and open questions
Scope recordOne page, delivered with the file, dated to the drawing issue it was measured against.
What to ask for at the quote stage
All three are free to arrange up front and expensive to retrofit.
Source takeoff files
On requestThe native file the conditions were built in, so your estimator opens the work, extends it and keeps going instead of rebuilding it from the PDF.
Ask before work starts
Say so with the drawings and the source file travels with the workbook at handover.
Your condition names and cost codes
At the sourceSend your condition list or code structure and the markups and workbook lines are named to it from the first sheet. Matching names at the source is what lets a file import cleanly rather than get remapped line by line at your end.
Rollups by area, floor, phase or building
StructureA multi-building or phased job comes back subtotalled the way you bid it, not as one flat total somebody on your side has to split afterwards.
Say how you bid it at upload
Splitting at delivery costs nothing. Splitting a finished workbook afterwards costs an evening.
Questions estimators ask before they upload
What estimators ask about quantity takeoff services before they upload a set.
Scope and coverage
Drawings we can measure
Accuracy and method
Files and delivery
Pricing and trying us
Send the drawings, get your quantities quoted
Name the divisions you want measured and your bid date. Coverage, price and the delivery date are confirmed in writing before a single condition is drawn.
